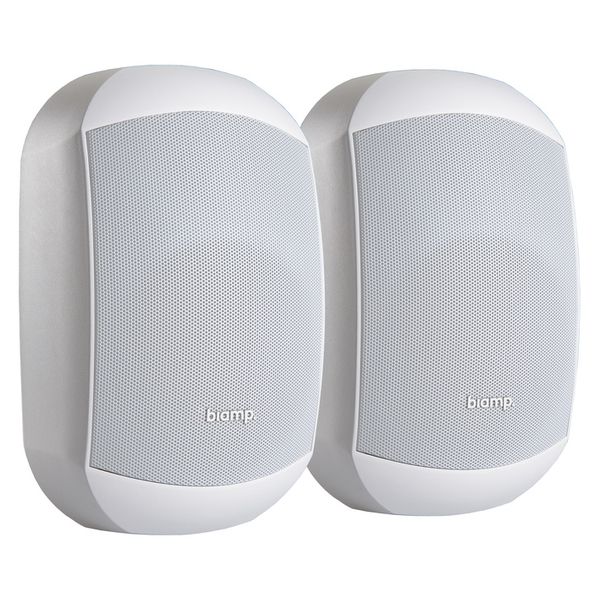

Biamp/apart mask6 original

Operating Mode Passive

Operating Environment Indoor/Outdoor

Operating Range (-10dB) 65 Hz to 22 kHz

Nominal Beamwidth (H x V) 100° x 50°

Transducers LF 1 x 6.5" (165 mm) coated paper cone

HF 1 x 1" (25 mm) soft dome

Continuous Power Handling

@ Nominal Impedance 49V 150W @ 16Ω (600W peak)

Nominal Sensitivity @ 1m @ 1W

90 dB

@ 2.83V

87 dB

Nominal Maximum SPL @ 1m Peak

118 dB

Continuous

112 dB

Transformer 70V: 60W, 30W, 15W, 7.5W, 3W

100V: 60W, 30W, 15W, 6W

Protection 3-step self-resetting protection

Recommended Amplifiers 150W-300W @ 16Ω (49V - 69V)

PHYSICAL

Input Connection

Audio connections made at the ClickMount bracket;

lever-action input and output terminals accept up to 16 AWG

conductors

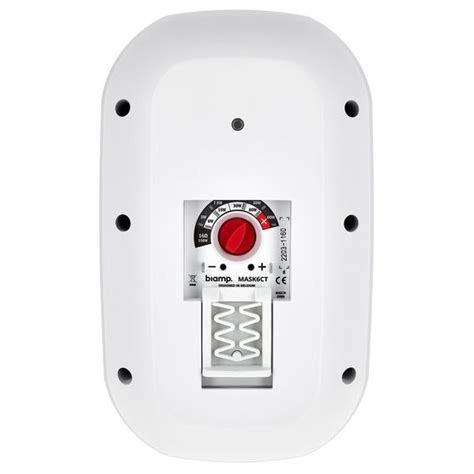

Controls Power tap / low impedance selector switch

Mounting Provisions ClickMount bracket

Environmental IP64 per IEC 60529

Dimensions H x W x D 12.9" x 7.8" x 7.5" (328 mm x 198 mm x 190 mm)

Weight 9.7 lbs (4.4 kg)

Finish Refer to the Technical Drawings (page 3)

Accessories (included) ClickMount bracket; safety cable

OPTIONS

Accessories

MASKCL(-BL/-W): 90° mounting bracket, black/white

MASKCV(-BL/-W): 2-cluster mounting bracket, black/white

MASKCW(-BL/-W): 4-cluster mounting bracket, black/whit
